Name: Ajax NVR (8-ch) Black excl. Hard Drive
SKU: 1970938-122-BL
Availability: InStock

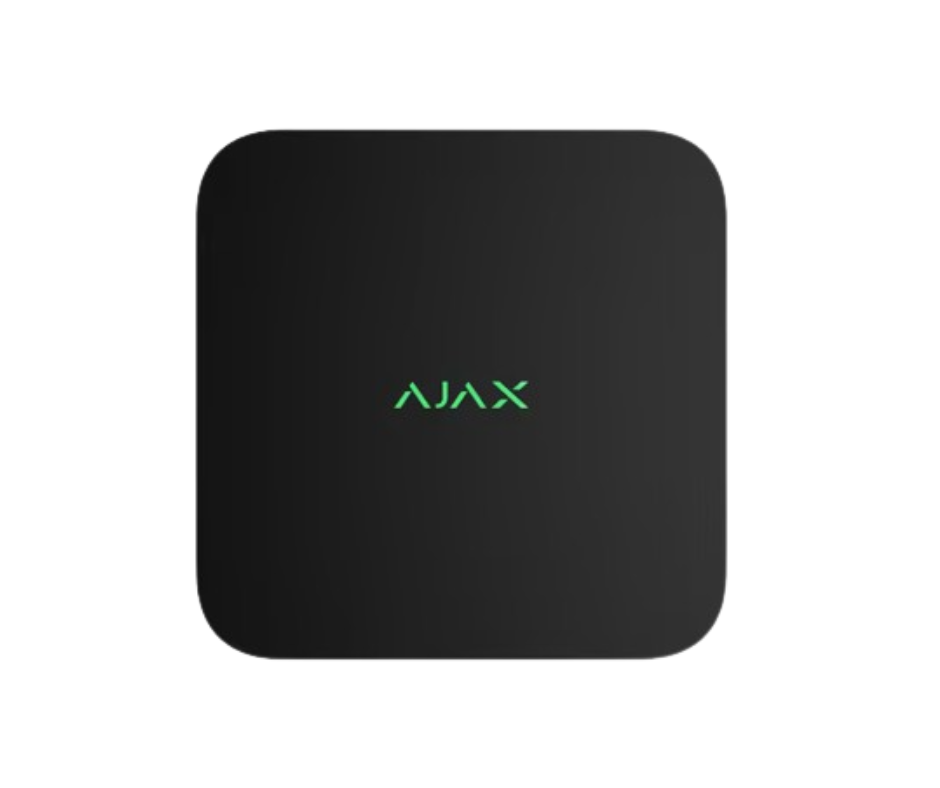

Ajax NVR (8-ch) Black excl. Hard Drive

Compatibility

Control panels

Hub
Hub Plus
Hub 2 (2G)
Hub 2 (4G)
Hub 2 Plus
Hub hybrid (2G)
Hub hybrid (4G)

Videostream

NVR models

8-channel

With up to 4K resolution (25/30 FPS).

IP cameras

ONVIF (Profile S/T)
RTSP

Storage

hard drive with a capacity of up to 16 TB (SATA connectivity, 3.5” size)

HDD not included.

Decoding formats

H.265
H.264

Bandwidth

up to 100 Mbps

* Recommendations: The device operating voltage is 110-240v~ (NVR is designed for indoor installation only.

Communication channels

Ethernet

up to 100 Mbps

Bluetooth

BLE frequency band: 2.400–2.4835 GHz

To set up an Ethernet connection.

Radio signal power

2.5 mW (100 mW limit)

Key features

Motion detection

NVR has built-in software to detect the motion in the frame. Possible to switch between image analysis by NVR or camera algorithms.

In-app video management system

Videowall that combines images from all connected cameras.
Event filters.
Timeline with smooth preview.

Visual verification of Ajax alarms

NVR allows setting up a scenario in which Ajax detectors trigger specific cameras to start recording. This results straight in mobile and desktop (monitoring) apps.

Privacy

Access rights distribution for users in mobile apps and for monitoring operators in PRO Desktop.

Power supply

Main

110–240 V~, 50/60 Hz, 0.6 A

Up to 24 W of mains power consumption.

Backup

CR2032 battery, 3 V

Only to power the system clock.

Sabotage protection

Tamper alarm

Notifications about attempts to detach the device from the surface or remove it from the mounting panel.

Enclosure

Dimensions

193 × 193 × 47 mm

Weight

700 g

Without a hard drive.

Operating temperature range

from 0°C to +40°C

Operating humidity

up to 75%

Protection class

IP20

Complete set

NVR

SmartBracket mounting panel

Power cable

Ethernet cable

Installation kit

Quick start guide
