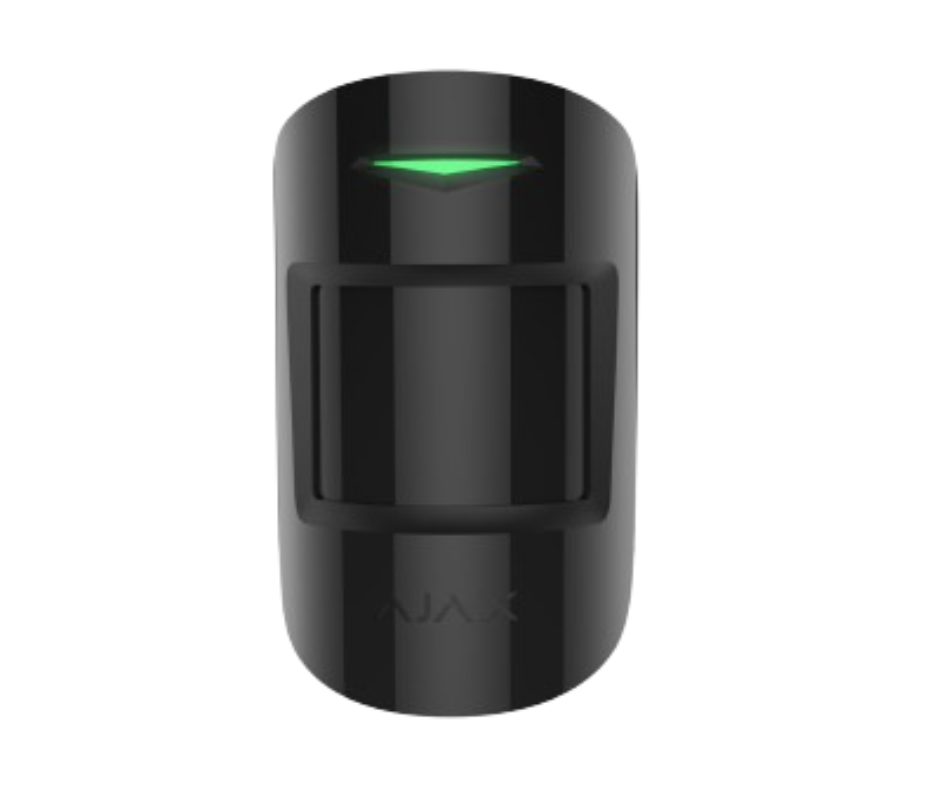

Name: Ajax MotionProtect Plus Black - Wireless IR motion detector with an additional K-band microwave sensor
SKU: 198220-02-BL1
Availability: InStock

Ajax MotionProtect Plus Black - Wireless IR motion detector with an additional K-band microwave sensor

Product Details

Sensitive element	1 × PIR sensor 1 × K-band microwave sensor When the device detects motion, it conducts an additional RF scan to eliminate false alarms due to thermal interference: air flows, heated curtains and blinds, fans, fireplaces, air conditioners, and other likely sources of false alarms.
Motion detection distance	Up to 12 m
Motion detector viewing angles (H/V)	88,5° / 80°
Time for motion detection	From 0.3 to 2 m/s
Pet immunity	Yes, height up to 50 cm, weight up to 20 kg
Tamper protection	Yes
Radio communication protocol	Jeweller
Radio frequency band	866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz Depends on the region of sale.
Compatibility	Operates with all Ajax hubs, radio signal range extender, ocBridge Plus, uartBridge
Maximum RF output power	Up to 20 mW
Modulation of the radio signal	GFSK
Radio signal range	Up to 1200 m (without obstacles)
Power supply	1 battery CR123A, 3 V
Battery life	Up to 5 years
Installation method	Indoors
Operating temperature range	From -10°С to +40°С
Operating humidity	Up to 75%
Overall dimensions	110 × 65 × 50 mm
Weight	96 g
Service life	10 years
