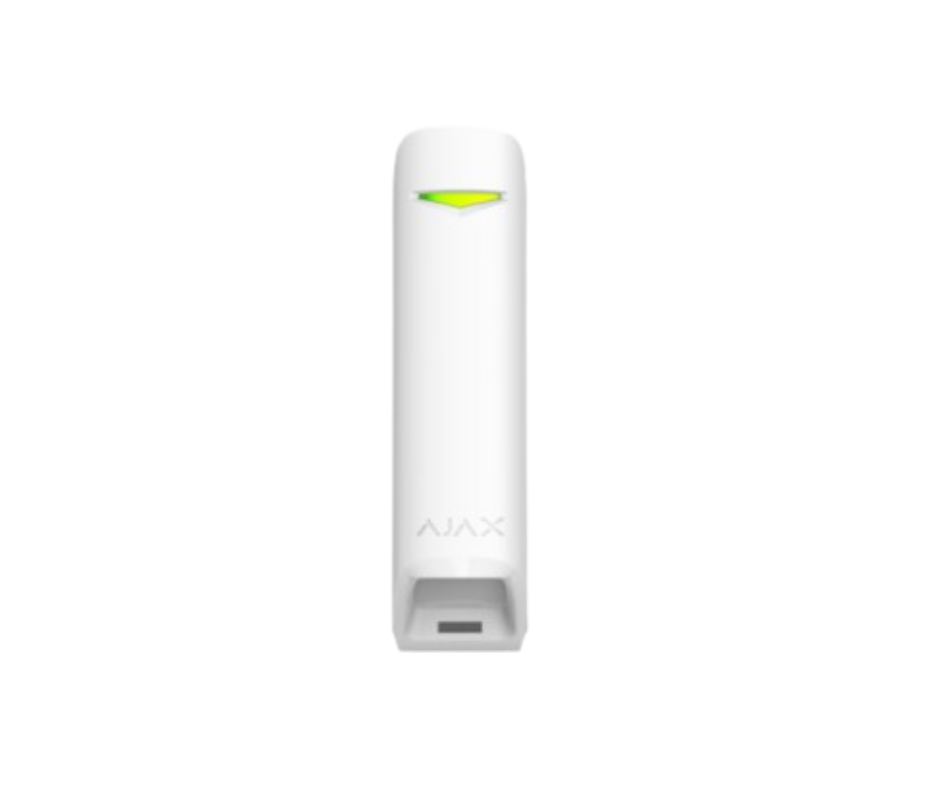

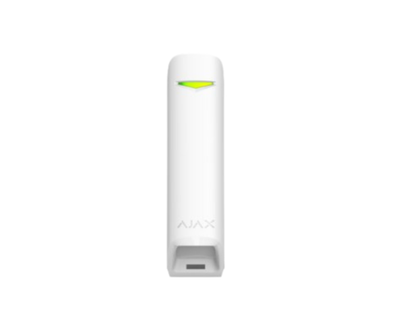

Name: Ajax MotionProtect Curtain White - Narrow beam indoor motion detector. Protects windows, doors, and valuables
SKU: 1938195-36-WH1
Availability: InStock

Ajax MotionProtect Curtain White - Narrow beam indoor motion detector. Protects windows, doors, and valuables

Product Details

Classification	Radio-interlinked photoelectric security detector
Type of detector	Wireless
Motion detection distance	Adjustable (from 6 to 15 meters)
Installation method	Indoors only
Compatibility	Operates with all Ajax hubs and range extenders
Sensing element	Two PIR sensors
False alarm reduction	Available, Correlation Signal Processing
Alarm signal delivery time	0.15 seconds
Detection angles	Horizontally — 6° Vertically — 90°
Time for motion detection	From 0.3 to 2 m/s
Sensitivity	Adjustable, 3 levels
Recommended installation height	2.4 meters
Power supply	Battery: CR123A, 3 V
Battery life	Up to 3 years
Jeweller radio technology	Communication range with detectors — up to 1,700 m in an open space Two-way communication between devices Radio frequency bands: 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz (depends on the region of sale) Self-adjusting RF output power — up to 20 mW Block encryption based on AES algorithm Detector polling period — 12−300 s Frequency hopping
Temperature sensor	Available
Operating temperature range	From −10°С to +40°С
Operating humidity	Up to 95%
Anti-sabotage	Fraud protection Jamming notification Tamper-resistant
Remote configuration and testing	+
Protection class	IP54
Dimensions	134 × 44 × 34 mm
Weight	118 g
Warranty	Replacement and repair for a period of 24 months from the date of sale. The warranty does not cover batteries.
Complete Set	MotionProtect Curtain motion detector SmartBracket mounting panel CR123A batteries (pre-installed) Bracket Installation kit User’s guide
