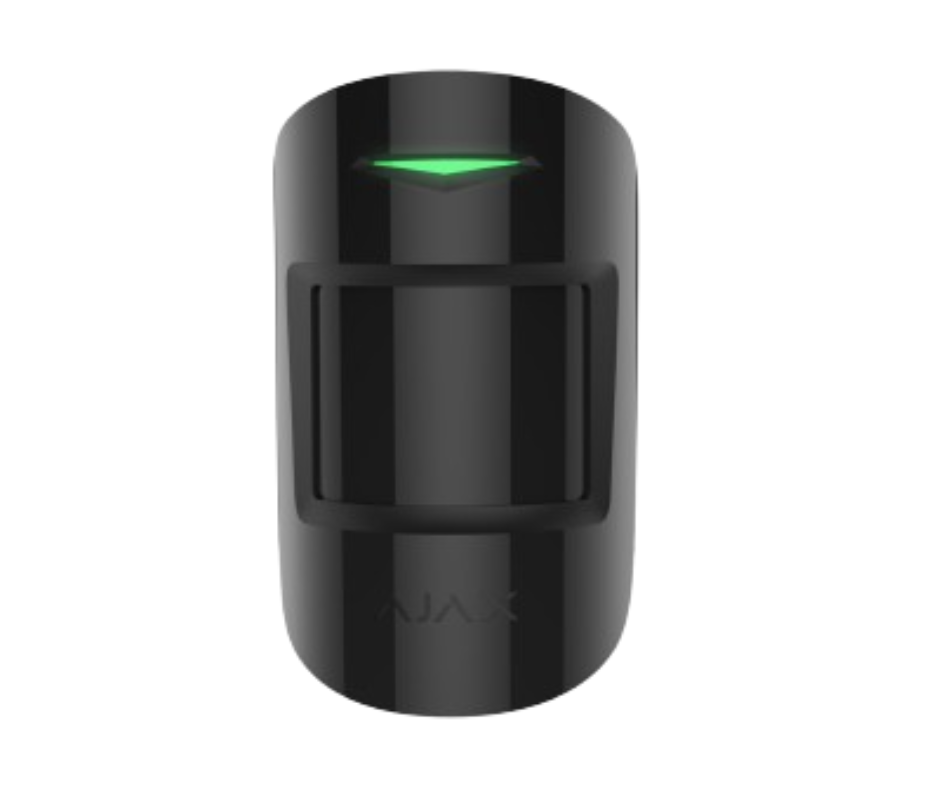

Ajax MotionProtect Black - Wireless IR motion detector
SKU 1938194-09-BL1
R0.00
Inquiry for pricing
Price incl. VAT (15%) R0.00
In stock
1
Save this product for later
Ajax MotionProtect Black - Wireless IR motion detector
Product Details
MotionProtect Jeweller
Wireless IR motion detector
Communication
Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
- Two-way communication.
- Advanced sabotage protection.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote control and configuration in Ajax apps
Frequency bands
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
GFSK
Radio communication range
up to 1,700 m
Between the device and a hub (or a range extender) in an open space.
Encrypted communication
All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping
To prevent radio interference and jamming.
Detection
Sensitive element
PIR sensor
Motion detection distance
up to 12 m
When installed at the height of 2.4 m.
Motion detection angle
horizontal: 88.5°
Motion detection speed
from 0.3 to 2 m/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
Sensitivity
3 levels
Adjusted by a PRO or a user with admin rights in the Ajax app.
Pet immunity
weight: up to 20 kg
height: up to 50 cm
height: up to 50 cm
False alarm prevention
SmartDetect
Software algorithm.
Temperature compensation
Effective motion detection at temperatures from −10 °C to +40 °C.
* Recommendations: It is recommended to install the detector at a height of 2.4m. The device is designed for indoor use only
Sabotage protection
Tamper alarm
Notifications on attempts to detach the detector from the surface or remove it from the mounting panel.
Protection against spoofing
device authentication
Communication loss detection
after 36 s
Detection time depends on the Jeweller or Jeweller/Fibra settings.
Power supply
Battery
1 × CR123A
Pre-installed.
Type
Type C.
Detector’s operating voltage range
2.1−3.3 V⎓
Detector’s nominal operating voltage
3 V⎓
Quiescent detector’s current consumption at nominal voltage
34.5 μA
Maximum detector’s current consumption at nominal voltage
61 mA
Full battery capacity
1,600 mAh
Low battery voltage
2.5 V⎓
Low battery recovery voltage
2.7 V⎓
End-of-life battery voltage
2.1 V⎓
The device is switched off.
End-of-life battery capacity
300 mAh
Calculated battery life
up to 5 years
Manufacturer
Huiderui
Enclosure
Dimensions
110 × 65 × 50 mm
Weight
86 g
Operating temperature range
from −10 °C to +40 °C
Operating humidity
up to 75%
Protection class
IP50
Complete set
MotionProtect Jeweller
SmartBracket mounting panel
CR123A battery (pre-installed)
Installation kit
Quick start guide
