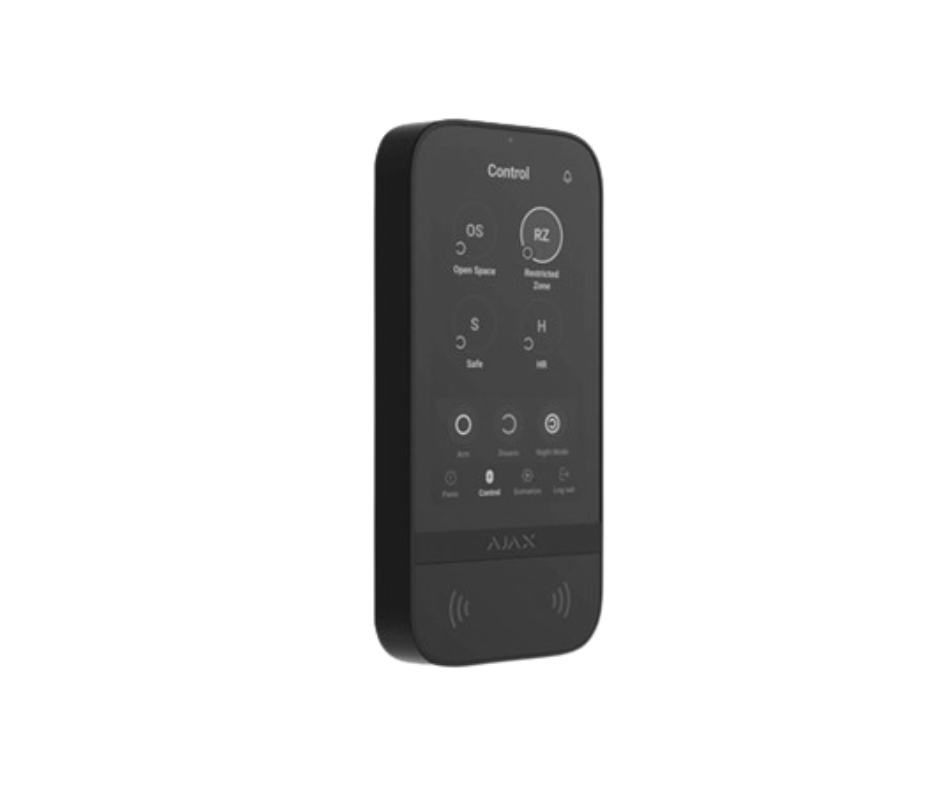

Ajax Keypad Touchscreen Black - Wireless keypad with a touch screen that supports authentication with smartphones, Pass, Tag, and codes
SKU 1958454-148-BL1
R0.00
Inquiry for pricing
Price incl. VAT (15%) R0.00
In stock
1
Save this product for later
Ajax Keypad Touchscreen Black - Wireless keypad with a touch screen that supports authentication with smartphones, Pass, Tag, and codes
Product Details
KeyPad TouchScreen Jeweller
Wireless keypad with a touch screen that supports authentication with smartphones, Pass, Tag, and codes
Compatibility
Control panels
- Hub 2 (2G)
- Hub 2 (4G)
- Hub 2 Plus
- Hub Hybrid (2G)
- Hub Hybrid (4G)
Range extenders
- ReX
Communication
Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
- Two-way communication.
- Advanced sabotage protection.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote configuration in the Ajax apps.
Frequency bands
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the sales region.
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and noise interference.
Radio signal modulation
GFSK
Radio signal range
up to 1,700 m
Between keypad and hub (or range extender) in an open space.
Encrypted communication
All the data stored and transmitted are protected by block encryption with a dynamic key.
Frequency hopping
Radio communication uses frequency hopping to prevent interception and jamming.
Wings communication technology
Proprietary wireless communication technology for transmitting the list of the groups, rooms and detectors to form the list of malfunctions.
Key features:
- Two-way communication.
- Block encryption featuring a dynamic key.
- Advanced sabotage protection.
- Reloading the data packages in case of transmission errors.
Frequency bands
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the sales region.
Radio signal range
up to 1,700 m
Between keypad and hub (or range extender) in an open space.
Encrypted communication
All stored and transmitted data are protected by block encryption with a dynamic key.
Frequency hopping
Radio communication uses frequency hopping to prevent interception and jamming.
Display
Diagonal
5″
Matrix type
IPS
Resolution
480 × 854 px
Sensor
capacitive
Brightness settings
- automatic
- manual
If Auto Adjust is enabled, the display brightness depends on the light conditions. This saves battery power.
Backlight lifetime
30,000 hours
Guaranteed backlight lifetime when the Always Active Display toggle is enabled. It can be adjusted in Ajax apps and activates only when external power is connected.
Key features
Panic buttons
- panic
- fire
- auxiliary help
Sending an alarm or calling for help from the separate keypad tab.
Control
- codes
- Tag key fobs
- Pass cards
- smartphone (Bluetooth)
Contactless access
DESFire® EV1, EV2
ISO14443-А (13.56 MHz)
ISO14443-А (13.56 MHz)
Access codes
up to 200 personal codes
One code per each user. The number of personal access codes depends on the hub model.
1 keypad code
Per each KeyPad TouchScreen.
Duress codes
up to 200 personal codes
One code per each user. The number of personal duress codes depends on the hub model.
1 keypad code
Per each KeyPad TouchScreen.
Codes for unregistered people
up to 99 personal codes
For people who are not registered in the Ajax system. The number of such codes depends on the hub model.
Arming without entering a code
The enabled feature allows the user to arm the system without entering a code or presenting the access device.
Group management
Changing the security mode of the groups to which the user has access from the keypad’s display.
Scenarios management
A separate keypad tab contains up to 6 buttons, and each one can control one automation device or a group of devices.
Indication of malfunctions and security mode
- display
- logo
- sound indication
If enabled, the logo lights up red continuously or when the system or group is armed. KeyPad TouchScreen indication is shown on the display only when it is active. Built-in buzzer notifies about alarms, door openings and entry/exit delays.
Fire alarm muting
Turns off the fire detectors alarm, including the interconnected alarm.
User pre-authorization
When the feature is enabled, viewing the current system status and control screen is unavailable. For access, the user must pre-authorize: enter a code or present a personal access device to the keypad.
Contactless authorization with a smartphone
A smartphone with the installed Ajax app and Bluetooth Low Energy (BLE) support can be used instead of Tag or Pass to authorize a user. BLE is a radio protocol with low power consumption. The keypad supports Android and iOS smartphones with BLE 4.2 and higher.
Auto screen wakeup
The keypad wakes up automatically when approaching it. The approaching distance can be adjusted in the app.
Remote firmware update
When a new firmware is available, an admin or PRO with the rights to configure the system can run the update in Ajax apps.
The keypad must be connected to an external power supply to update the firmware.
The keypad must be connected to an external power supply to update the firmware.
* Recommendations: The device is designed for indoor use only. Please note that the keypad must be connected to an external power supply to update the firmware and keep the screen always active.
Sabotage protection
Unauthorized access auto-lock
The keypad locks if an incorrect code is entered or unverified access devices are used more than 3 times in a row within 1 minute. The lock time is adjusted by PRO or user with admin rights in the Ajax app.
Tamper alarm
Notifications on attempts to detach the keypad from the surface or remove it from the mounting panel.
Holding screw
To secure the keypad on SmartBracket.
Protection against spoofing
device authentication
Communication loss detection
after 36 s
Detection time depends on the Jeweller or Jeweller/Fibra settings.
Power supply
Batteries
6 × AA
Pre-installed.
Calculated battery life
up to 1.5 years
With default settings and up to 4 interactions with a keypad per day.
Keypad’s operating voltage range
10.5–14 V⎓, up to 0.4 A
The batteries serve as a backup when the external power supply is connected.
Keypad’s nominal operating voltage
12 V⎓
Enclosure
Dimensions
172 × 82 × 26 mm
Weight
327 g
Operating temperature range
from -10°C to +40°C
Operating humidity
up to 75%
Complete set
KeyPad TouchScreen
SmartBracket mounting panel
6 АА batteries (pre-installed)
Installation kit
Quick start guide
