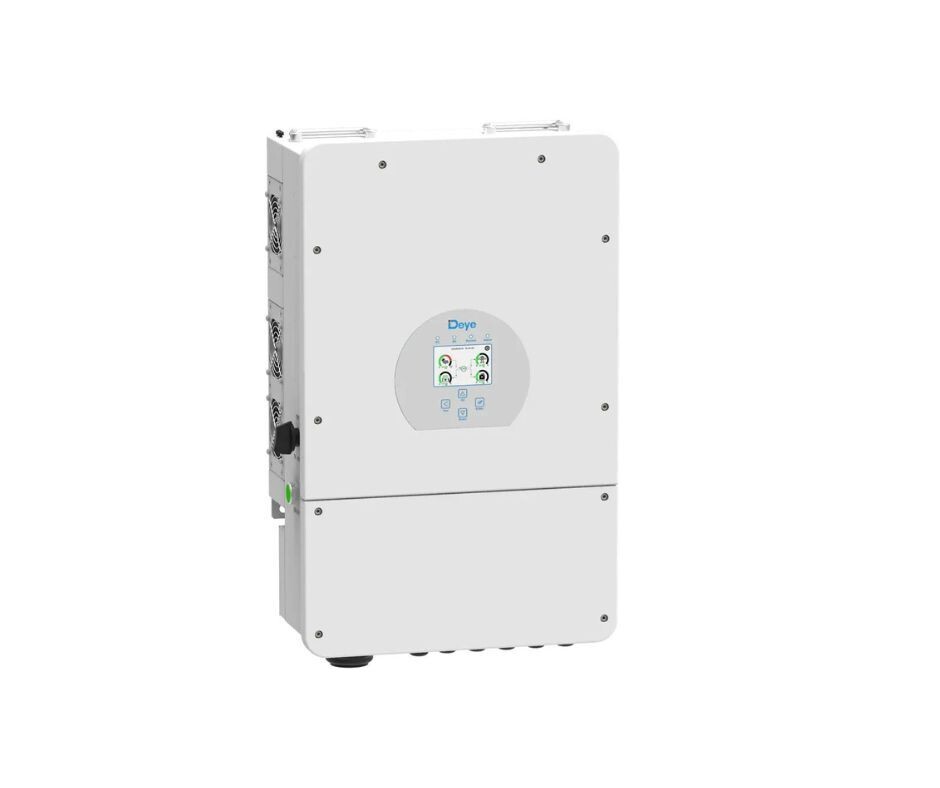

12KW Deye Single Phase Hybrid Inverter 48V (Includes Wi-Fi Dongle)

• Colorful touch LCD with IP65 Protection Degree

• AC Couple to retrofit existing Solar System

• Maximum 16 Units Parallel for On-Grid and Off-Grid operation

• Supports Multiple Batteries in Parallel

• Maximum Charging / Discharging Current of 290A

• 6 Time Periods for Battery Charging / Discharging

• Support for storing Energy from Diesel Generator

• Self-Consumption and Feed-In to Grid

• Auto Restart while AC is recovering

• Programmable Supply-Priority for Battery or Grid

• Programmable multiple operation modes: On-Grid, Off-Grid and UPS

• Configurable Battery Charging: Current / Voltage based on applications by LCD Setting

• Configurable AC / Solar / Generator Charger priority by LCD Setting

• Compatible with Mains Voltage or Generator Power

• Overload / Over Temperature / Short Circuit protection

• Smart Battery Charger design for optimized Battery performance

• Limit Function to prevent excess power overflow to the Grid

• Supports WIFI monitoring and 2 Strings of each MPPT

• Smart settable three stages MPPT Charging for optimized Battery performance

• Time-Of-Use Function

• Smart-Load Functio
